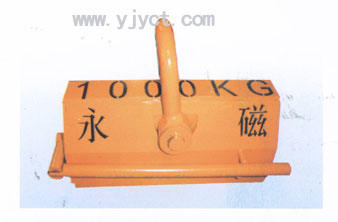

YC1 series Permanent magnet lifter

YC1 series permanent-magnet lifter products are Manual degaussing unloading products:
1) simply turning the handle, it can complete produce and degaussing magnetic cycle, to achieve the purpose of adsorp-tion and unloading,
2) Highly energy efficient, no power consumption.
3) There are folding handle and straight handle two kinds to operate the products.
4) It also can based on users' needs, The bottom can be designed to be V-type or arc-type, Dedicated in cylindrical, round steel's lifting and transport. It also can add more rings to achieve the function of side hanging.

Suitable scope: Small work, extra-thick cylindrical, bevel, middle or thick plates, section steels, It is used for the distribution and storage, machinery metal processing in the advanced industrial manufacturing environment.

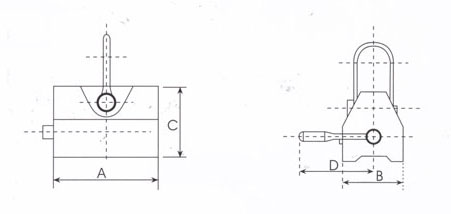

YC1 series products' structure diagram

YC1 series Technical Data Sheet
Model A(mm) B(mm) C(mm) D(mm) Mass(kg) Pull-off strength(kg) Rated lifting(kg) Adsorption plate's thickness(mm)
YC1-0.1 110 65 90 170 4 ≥400 100 ≥5
YC1-0.3 180 110 130 250 18 ≥1200 300 ≥5
YC1-0.5 280 110 130 250 28 ≥2000 500 ≥5
YC1-0.8 330 135 170 330 43 ≥3200 800 ≥10
YC1-1 390 135 170 400 54 ≥4000 1000 ≥15
YC1-2 370 190 210 400 95 ≥8000 2000 ≥30
YC1-3 470 190 210 500 128 ≥12000 3000 ≥35
YC1-5 620 320 330 650 380 ≥20000 5000 ≥50
