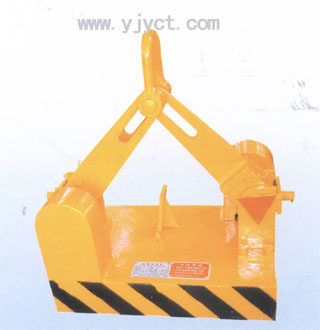

YC2-X/A series lifting magnets
(conventional)

YC2-X/A series lifting permanent-magnet products are conven-tional products for automatic degauss and unloading, It is our company's patent, patent name is"lifting permanent-magnet" Patent No.ZL200420035639.5, This series of products is our superior products, The products' performance is outstanding, The characters by the following:
1) By using driving hook lift up and down, To complete produce and degaussing magnetic cycle, and to achieve the purpose of adsorption and unloading.
2) Highly energy efficient, no power consumption
3) Not only can be used seperated but also combined.

Most suitable lifting: Large and small plates, section steels

Most suitable for: engineering machinery, smelting, shipbuilding, heavy machinery, port handling, logistics and other industries handling loading and unloading freight yard

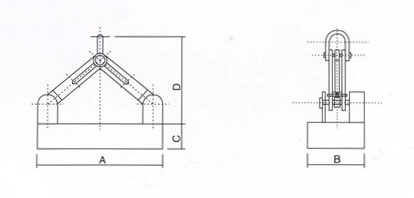

YC2-X/A series products' structure diagram

YC2-X/A series Technical Data Sheet
Model A(mm) B(mm) C(mm) D(mm) Mass(kg) Pull-off strength(kg) Rated lifting(kg)
YC2-0.5/A 400 326 110 450 100 ≥2000 500
YC2-1/A 550 380 110 520 150 ≥4000 1000
YC2-1.5/A 800 380 120 900 230 ≥6000 1500
YC2-2/A 720 460 120 800 265 ≥8000 2000
YC2-3/A 870 550 135 1000 370 ≥12000 3000
